FTTH – FIBRE TO HOME

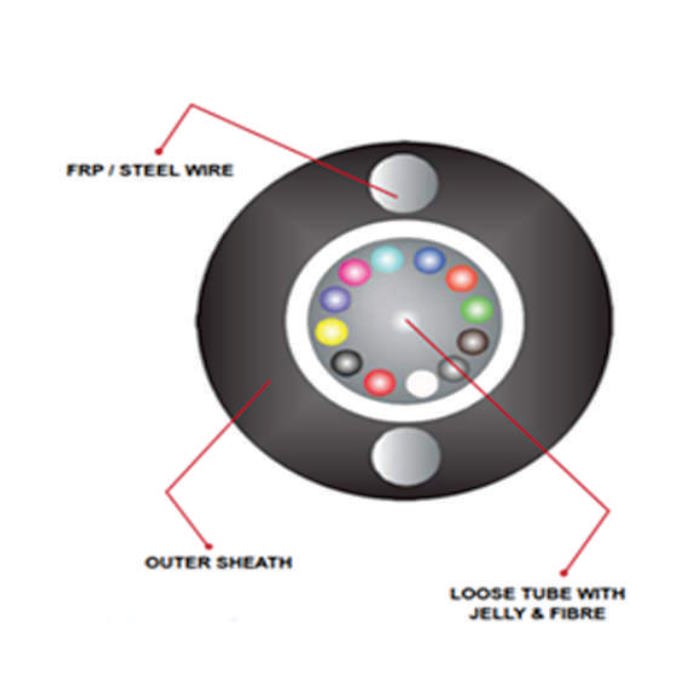

Outdoor Cable(2-12F)

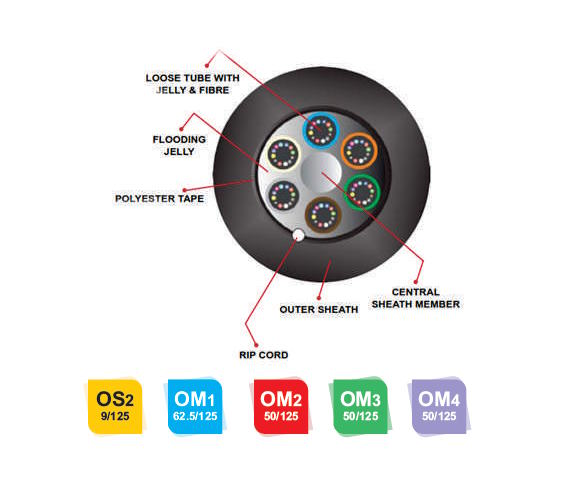

Cable Construction
- Up to 144 low water peak single mode fibres in compliance with ITU-TG. 652D
- Member forTensile Strength
- Loose buffer tubes jelly filled
- Loose buffer tubes S-Z Stranded
- Cable core filled with jelly
- S-Z core wrapped with polyester tape
- UV stabilized PE outer sheath, black
| Fibre Count | Diameter (mm) (Nominal) | Weight (kg/km) | Tensile Strength Installation | Tensile Strength Installed |
|---|---|---|---|---|
| Upto 72 | 10.0 | 85 | 1800 | 1000 |
| 96 | 12.0 | 115 | 1800 | 1000 |
| 144 | 15.0 | 180 | 1800 | 1000 |
Variants*
- Cable can be supplied with single mode (ITU-T-G652, G655, and G657) & Multimode (50μm & 62.5μm)
- Outer Jacket can be of PVC, LSZH, and HDPE
- Strength member can be Steel or FRP
- These are general characteristics; customized designs are available as per requirements
